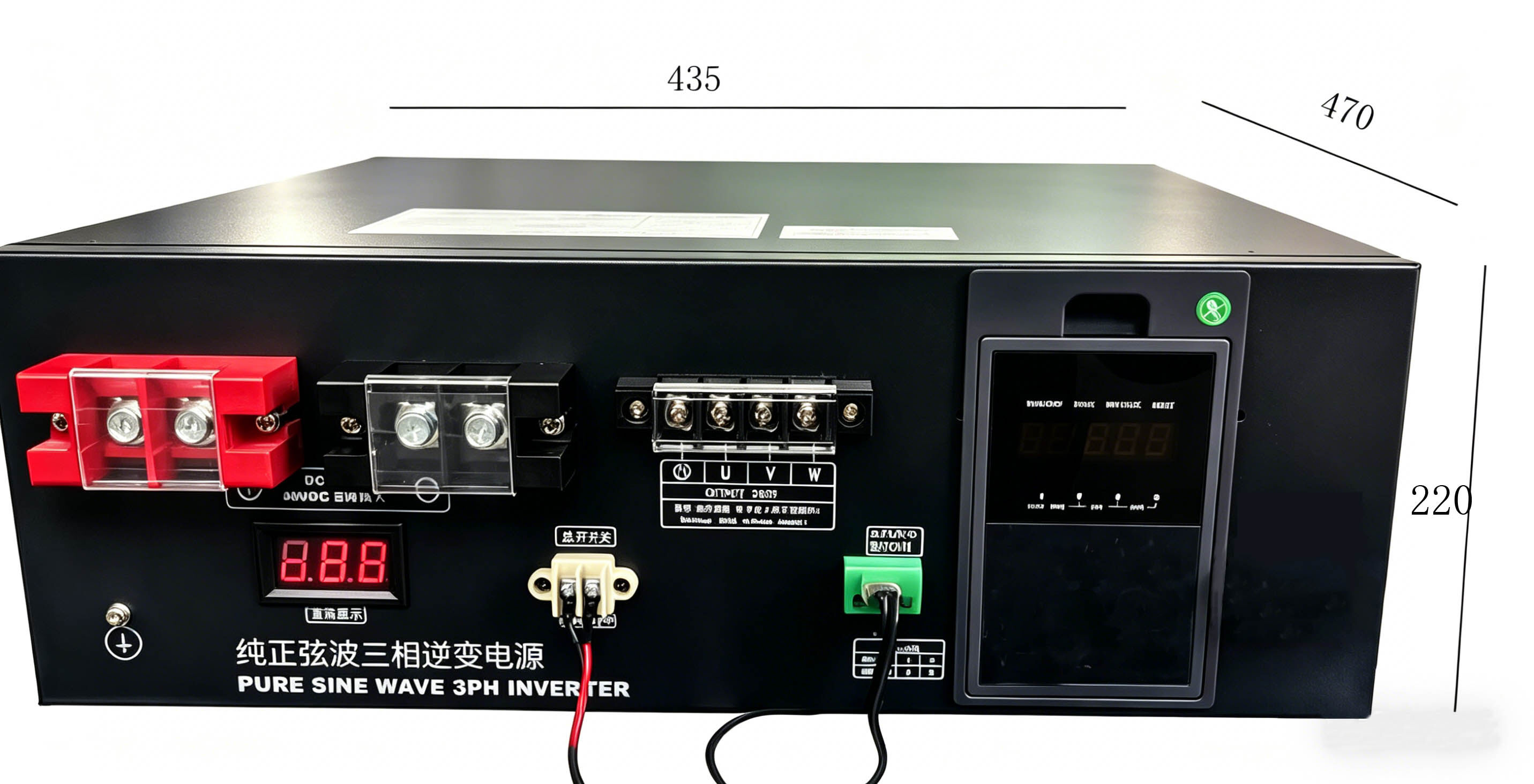

DAT3-48380-40K Three-Phase Inverter
48V/96V DC to 380VAC 50Hz Pure Sine Wave Output
7cbe6294-144b-4f15-a78d-4a140ef5baef.pdf
Download DatasheetTechnical Specifications
| Product Model | DAT3-48380-40K |
| Battery Voltage | 48VDC/96VDC |
| Product Voltage Model (Voltage Selection) | DAT3-48380-40K/DAT3-96380-40K |
| Voltage Range | 40V-60V/80V-120V |
| Output Voltage | 380VAC 50Hz/60Hz Pure Sine Wave |
| Peak Power | 40 kW |
| Continuous Power | 20 kW |
| Maximum Input Current | 500A/250A MAX |
| Battery wire gauge | 70 sq ft/35 sq ft (within 2 meters) |
| Efficiency | 88-90% |
| No-load power | Less than 1% of rated power |
| Protection Features | Overvoltage Protection, Undervoltage Protection, Overload Protection, Overtemperature Protection, Output Short-Circuit Protection, Output Phase Loss Protection |
| Reverse polarity | Blow fuse |
| Maximum Output Current | Max continuous 53A |
| Charging | No charging function |
| Auto-Switch BYPASS | Optional (Inverter and Utility Transfer) |
| Operating Temperature | -10°C ~ 50°C |
| Resistive Load | Resistive load 1 below 6kW |
| Servo motor load | Servo motor load below 12KW |
| Built-in soft start for the inverter | (Using the inverter's built-in soft-start function) / Less than 12 kW |
| External Soft Starter | (Inverter + VFD) / Less than 10 kW |
| Asynchronous Motor Hard Start | (Straight-on start) Same as utility power mode / less than 5 kW |
| Forward and Reverse Control (Motor Forward and Reverse Operation) | Controlled by 3 lines/1 Forward 2 Reverse 3 Stop/Short-circuit effective |
| RS485 Communication | Optional |
| 24VDC Output | Power the PLC with optional (10A-20A) |
| Output Wiring | 3-phase 3-wire (with neutral / 220V, low power) |
| Dimensions | 0mm (W) × 0mm (H) × 0mm (D) |
| Net Weight | 0KG |
| 220VAC output | Power per phase < 500W (balance power across phases) |
Product Features
Pure Sine Wave Output
380VAC/50Hz pure sine wave, compatible with various precision devices
Multiple layers of protection
Over-voltage, over-current, and over-temperature protection to ensure device safety
Industrial-grade quality
Built for harsh industrial environments; operates from 10°C to 50°C
Efficient heat dissipation
Optimized thermal design for stable long-term operation
Application Areas
Industrial Equipment Power Conversion
Backup Power System
New Energy Power Generation System
Backup power for communication base stations
Emergency Power Supply System
